Spring Plunger
Material :
Steel , Stainless Steel 304 (A2)
Finishing :
Steel comes in Black Oxide Finishing
Diameter Size:
M3 , M4 , M5 , M6 , M8 , M10 , M12 , M16 and M20
Read More:
Catalog Spring Plunger

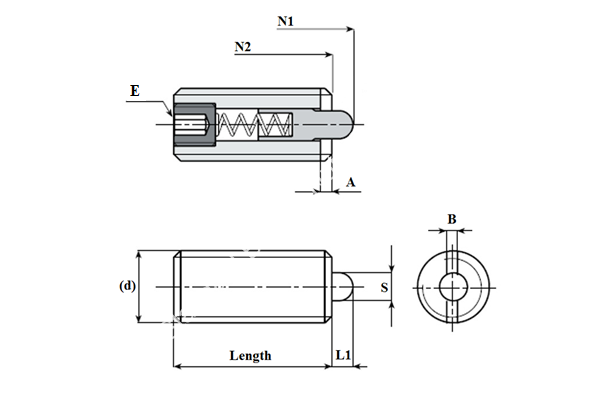

| Diameter Size (d) | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 |
| Pitch | 0.5 | 0.7 | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.5 |
| E | 0.7MM | 1.3MM | 1.5MM | 2.0MM | 2.5MM | 3MM | 4MM | 5MM | 6MM |
| Length | 12MM | 15MM | 18MM | 20MM | 22MM | 22MM | 28MM | 32MM | 40MM |
| L1 | 1.2MM | 1.5MM | 2.3MM | 2.5MM | 3MM | 3MM | 4MM | 5MM | 10MM |
| A | 0.4MM | 0.6MM | 0.8MM | 1.0MM | 1.4MM | 1.4MM | 2.0MM | 2.5MM | 3.0MM |
| B | 0.4MM | 0.6MM | 0.8MM | 1.0MM | 1.2MM | 1.6MM | 2.0MM | 2.5MM | 2.5MM |
| S | 1.0MM | 1.5MM | 2.4MM | 2.7MM | 3.5MM | 4.0MM | 6.0MM | 7.5MM | 10.0MM |
| N1 (Newton) | 4MM | 5MM | 6MM | 7MM | 9MM | 9MM | 10MM | 45MM | 60MM |
| N2 (Newton) | 14MM | 16MM | 20MM | 20MM | 35MM | 35MM | 55MM | 100MM | 120MM |
