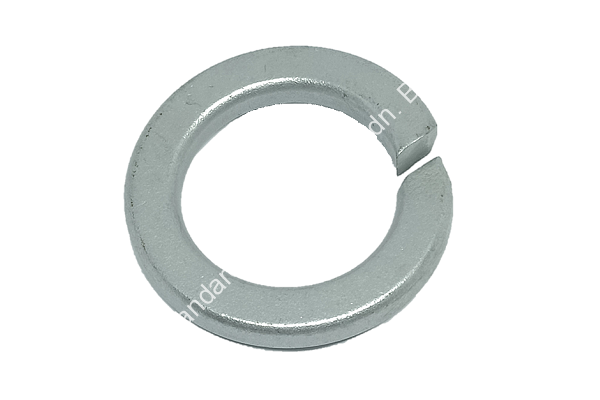

Spring Washer
Material :
Steel , Stainless Steel 304 (A2) , Stainless Steel 316 (A4)
Finishing :

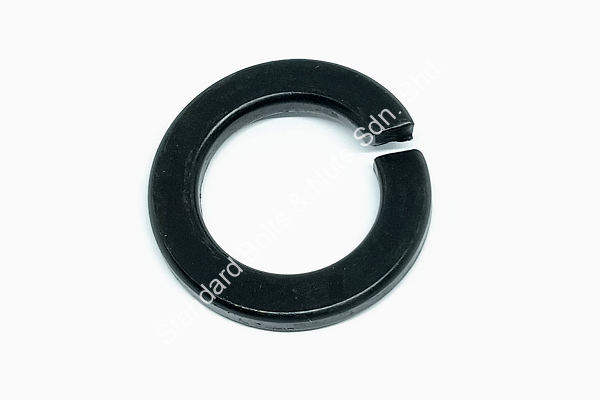

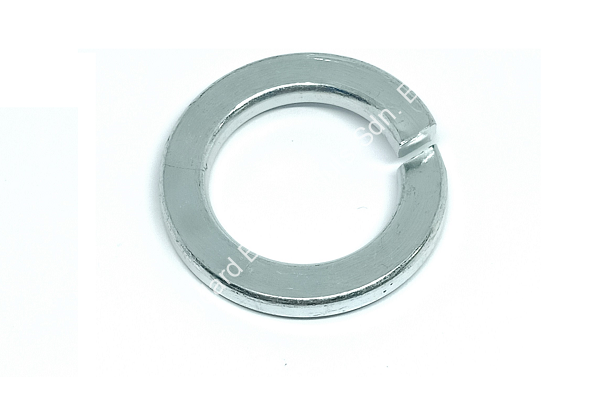

Steel comes in Black Oxide and Zinc Plated Finishing
Note:
Drop us an email if you have other coating requirement
Read More:
Catalog Spring Washer
| Diameter Size | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 |
| d1 | 2.1MM | 2.6MM | 3.1MM | 4.1MM | 5.1MM | 6.1MM | 8.1MM | 10.2MM | 12.2MM | 14.2MM | 16.2MM | 18.2MM | 20.2MM | 22.5MM |
| d2 | 4.4MM | 5.1MM | 6.2MM | 7.6MM | 9.2MM | 11.8MM | 14.8MM | 18.1MM | 21.1MM | 24.1MM | 27.4MM | 29.4MM | 33.6MM | 35.9MM |
| Height (h) | 1.2MM | 1.4MM | 1.4MM | 1.8MM | 2.4MM | 3.2MM | 4MM | 4.4MM | 5MM | 6MM | 7MM | 7MM | 8MM | 8MM |
| Diameter Size | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 | M56 | M60 | M64 | M68 |
| d1 | 24.5MM | 27.5MM | 30.5MM | 33.5MM | 36.5MM | 39.5MM | 42.5MM | 45.5MM | 49MM | 53MM | 57MM | 61MM | 65MM | 69MM |
| d2 | 40MM | 43MM | 48.2MM | 53.2MM | 58.2MM | 61.2MM | 68.2MM | 71.2MM | 75MM | 82MM | 87MM | 91MM | 95MM | 99MM |
| Height (h) | 10MM | 10MM | 12MM | 12MM | 12MM | 12MM | 14MM | 14MM | 14MM | 16MM | 16MM | 16MM | 16MM | 16MM |
