Spring Washer for Socket Head Cap Screw (DIN7980)
Material :
Steel
Finishing :
Steel comes in Black Oxide Finishing
Note:
Drop us an email if you have other coating requirement
Read More:
Catalog Spring Washer for Socket Head Cap Screw (DIN7980)

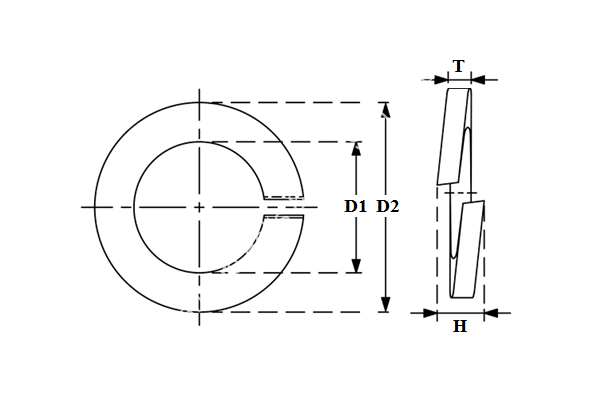

| Size | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 |
| Diameter (D1) | 3.1MM | 4.1MM | 5.1MM | 6.1MM | 8.1MM | 10.2MM | 12.2MM | 14.2MM |
| Diameter (D2) | 5.6MM | 7.0MM | 8.8MM | 9.9MM | 12.7MM | 16MM | 18MM | 21.1MM |
| Thickness (T) | 1.0MM | 1.2MM | 1.6MM | 1.6MM | 2.0MM | 2.5MM | 2.5MM | 3.0MM |
| Height (H) | 2.0MM | 2.4MM | 3.2MM | 3.2MM | 4.0MM | 5.0MM | 5.0MM | 6.0MM |
| Size | M16 | M18 | M20 | M22 | M24 | M27 | M30 | |
| Diameter (D1) | 16.2MM | 18.2MM | 20.2MM | 22.5MM | 24.5MM | 27.5MM | 30.5MM | |
| Diameter (D2) | 24.4MM | 26.4MM | 30.6MM | 32.9MM | 35.9MM | 38.9MM | 44.1MM | |
| Thickness (T) | 3.5MM | 3.5MM | 4.5MM | 4.5MM | 5.0MM | 5.0MM | 6.0MM | |
| Height (H) | 7.0MM | 7.0MM | 9.0MM | 9.0MM | 10.0MM | 10.0MM | 12.0MM |
