Taper Washer
Material :
Steel & Stainless Steel 304 (A2)
Finishing :

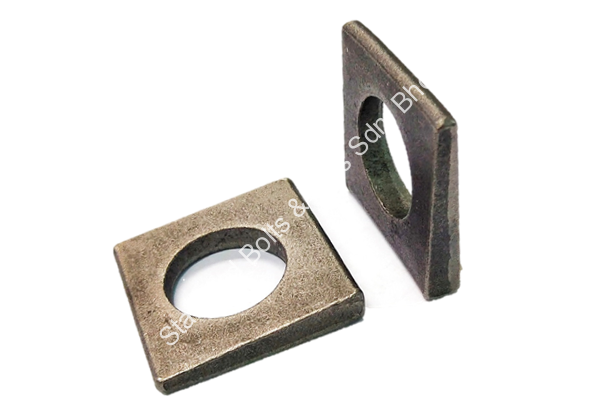

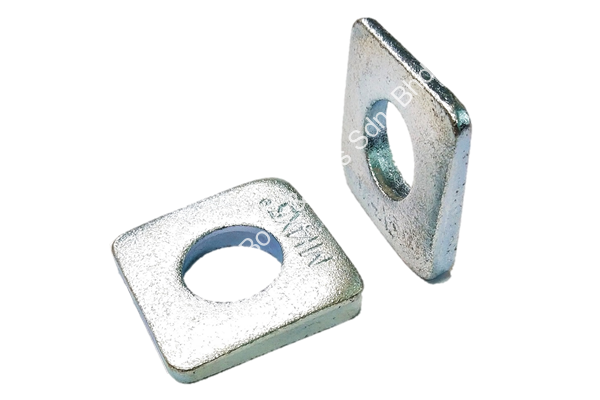

Steel comes in Plain and Zinc Plated Finishing
Read More:
Catalog Taper Washer
| MATERIAL : STEEL | ||||||||||||
| Size | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 |
| D1 | 9MM | 11MM | 14MM | 16MM | 18MM | 20MM | 20MM | 24MM | 26MM | 29MM | 32MM | 34MM |
| D2 & D3 | 22MM | 22MM | 25MM | 31MM | 31MM | 39MM | 39MM | 43MM | 48MM | 50MM | 58MM | 60MM |
| T2 | 4.5MM | 4.5MM | 4.5MM | 6.0MM | 6.0MM | 6.0MM | 6.0MM | 6.0MM | 7.0MM | 7.0MM | 8.0MM | 8.0MM |
| MATERIAL : STAINLESS STEEL 304 | ||||||||
| Size | M6 | M8 | M10 | M12 | M14 | M16 | M20 | M24 |
| D1 | 7MM | 9MM | 11MM | 14MM | 16MM | 17.5MM | 22MM | 26MM |
| D2 & D3 | 16MM | 18MM | 22MM | 25MM | 31MM | 32MM | 40MM | 48MM |
| T2 | 2.6MM | 3.0MM | 4.5MM | 4.5MM | 6.0MM | 5.5MM | 6.0MM | 7.0MM |
