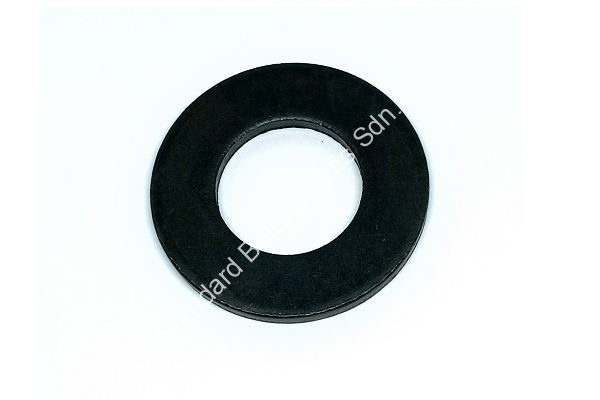

Flat Washer (MM)
Material :
Steel , Stainless Steel 304 (A2) , Stainless Steel 316 (A4)
Finishing :
Steel comes in Plain and Zinc Plated Finishing
Note:
Drop us an email if you have other coating requirement
Read More:
Catalog Flat Washer (MM)
| Flat Washer (MM Size) | |||||||||||
| Size | M3 | M4 | M5 | M6 | M6 | M8 | M8 | M8 | M10 | M10 | M12 |
| Diameter (OD) | 8.2MM | 10MM | 12.5MM | 13.2MM | 17MM | 18.2MM | 18MM | 22MM | 17MM | 22MM | 26MM |
| Thickness | 0.8 | 1.0MM | 1.2MM | 1.2MM | 2.0MM | 1.2MM | 2.0MM | 2.0MM | 1.5MM |
|
|
| Size | M14 | M16 | M20 | M22 | M24 | M24 | M27 | M30 | M33 | M36 | M45 |
| Diameter (OD) | 31.5MM | 32MM | 40MM | 49MM | 48MM | 44MM | 50MM | 59.5MM | 65.5MM | 71.5MM | 85MM |
| Thickness | 2.0MM |
|
|
3.0MM |
|
3.0MM |
|
3.0MM | 3.5MM | 4.0MM | 4.0MM |
