Turn Buckle
Different Types of Turnbuckles :

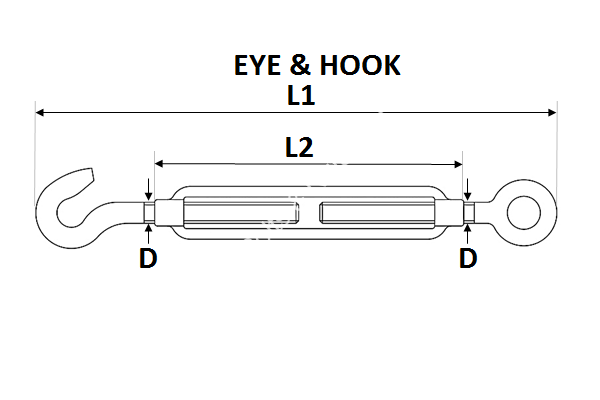

– Eye & Hook Turnbuckles
– Eye & Eye Turnbuckles
– Hook & Hook Turnbuckles
Material :
Steel, Stainless Steel 304 (A2)
Finishing :
Steel comes in Zinc Plated Finishing
Read More:
Catalog Turn Buckle
| Thread Size (D) | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 |
| Turnbuckle Length (L2) | 60MM | 70MM | 90MM | 120MM | 150MM | 200MM | 250MM | 300MM |
| Hook & Hook (L1) | 102MM | 124MM | 154MM | 210MM | 257MM | 325MM | 390MM | 510MM |
| Eye & Hook (L1) | 103MM | 124MM | 162MM | 210MM | 256MM | 330MM | 400MM | 495MM |
| Eye & Eye (L1) | 103MM | 124MM | 170MM | 208MM | 266MM | 335MM | 415MM | 485MM |
| Thread Size (D) | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | 5/8 | 3/4 | |
| Turnbuckle Length (L2) | 70MM | 90MM | 120MM | 150MM | 200MM | 250MM | 300MM | |
| Hook & Hook (L1) | 124MM | 154MM | 210MM | 257MM | 325MM | 390MM | 510MM | |
| Eye & Hook (L1) | 124MM | 162MM | 210MM | 256MM | 330MM | 400MM | 495MM | |
| Eye & Eye (L1) | 124MM | 170MM | 208MM | 266MM | 335MM | 415MM | 485MM |
