Shackle

A shackle is a u-shaped connecting tool with a load-bearing designed to be used with removable pin. Shackles may be used to attach various lifting slings and chain, or rope, to an object or to one another for load securement applications. A shackle has two main paths, the body and pin. The body may have the anchor form (bow) or the chain form (D type). So, each body shape is possible to use with a screw pin or bolt-type pin, depending on the specific application. For applications, Standard Bolts prides itself on being a shackle supplier in Malaysia that is able to meet the expectations of all kinds of customers.



Material :
Mild Steel, Stainless Steel 304 (A2)

Finishing :
Mild Steel comes in Plain and Zinc Plated Finishing

Diameter Size:
M5 , M6 , M8 , M10 , M12 , M16 , M20 , M22 and M24

Read More:

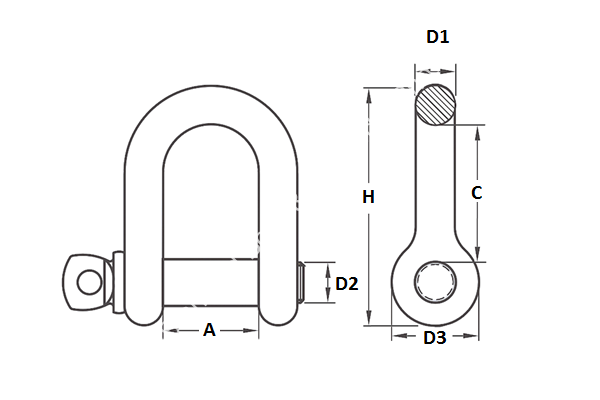

Catalog Shackle



SIZE M5 M6 M8 M10 M12 M16 M20
D1 5MM 6MM 8MM 10MM 12MM 16MM 20MM
D2 5MM 6MM 8MM 10MM 12MM 16MM 20MM
D3 10MM 12MM 16MM 21MM 24MM 31MM 34MM
A 11MM 13MM 16MM 20MM 25MM 34MM 37MM
C 18MM 21MM 28MM 34MM 42MM 54MM 65MM
H 29MM 36MM 47MM 59MM 72MM 93MM 107MM
