Wire Rope Clip

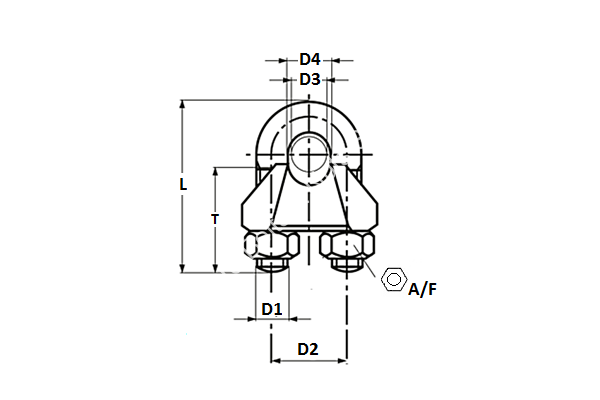

| For Wire Diameter | D1 | D2 | D3 | D4 | Length (L) | Thread (T) | NUT (A/F) |
| 1/8 | M4 | 9MM | 3MM | 4MM | 20MM | 12MM | 7MM |
| 3/16 | M5 | 11MM | 5MM | 6MM | 24MM | 13MM | 8MM |
| 1/4 | M5 | 13MM | 6.5MM | 8MM | 28MM | 15MM | 8MM |
| 5/16 | M6 | 16MM | 8MM | 9MM | 34MM | 19MM | 10MM |
| 3/8 | M8 | 19MM | 10MM | 11MM | 42MM | 22MM | 13MM |
| 7/16 | M8 | 20MM | 11MM | 12MM | 44MM | 22MM | 13MM |
| 1/2 | M10 | 24MM | 13MM | 14MM | 55MM | 30MM | 17MM |
| 9/16 | M10 | 25MM | 14MM | 15MM | 57MM | 30MM | 17MM |
| 5/8 | M12 | 29MM | 16MM | 17MM | 63MM | 33MM | 19MM |
