Contact Washer
Material :
Steel , Stainless Steel 304 (A2)
Finishing :
Steel comes in Zinc Plated Finishing
Note:
Drop us an email if you have other coating requirement
Read More:
Catalog Contact Washer

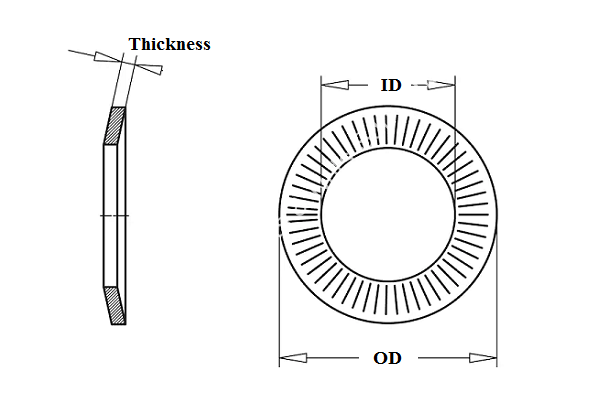

| Size | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 |
| Diameter (ID) | 3.1MM | 4.1MM | 5.1MM | 6.1MM | 8.2MM | 10.2MM | 12.4MM | 14.4MM | 16.4MM | 20.5MM |
| Diameter (OD) | 8MM | 10MM | 12MM | 14MM | 18MM | 22MM | 27MM | 30MM | 32MM | 40MM |
| Thickness | 0.6MM | 0.9MM | 1.1MM | 1.3MM | 1.4MM | 1.6MM | 1.8MM | 2.4MM | 2.8MM | 3.2MM |
