External Overlap Tooth Lock Washer
Material :
Steel & Stainless Steel 304 (A2)
Finishing :
Steel comes in ZincPlated Finishing
Note:
Drop us an email if you have other coating requirement
Read More:

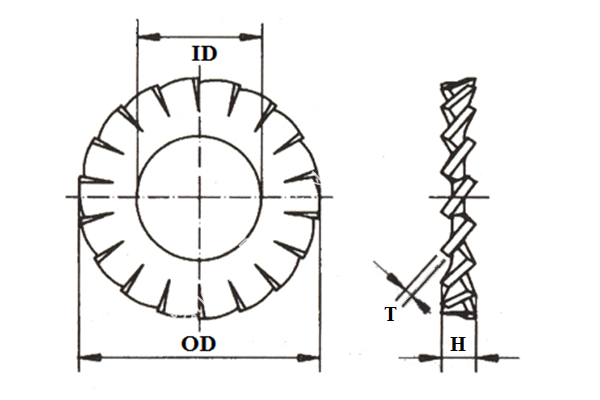

Catalog External Overlap Tooth Lock Washer
| Size | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 |
| Diameter (ID) | 3.2MM | 4.3MM | 5.3MM | 6.4MM | 8.4MM | 10.5MM | 13MM | 15MM |
| Diameter (OD) | 6MM | 8MM | 10MM | 11MM | 15MM | 18MM | 20.5MM | 24MM |
| Thickness (T) | 0.4MM | 0.5MM | 0.6MM | 0.7MM | 0.8MM | 0.9MM | 1.0MM | 1.0MM |
| Size | M16 | M18 | M20 | M22 | M24 | M27 | M30 | |
| Diameter (ID) | 17MM | 19MM | 21MM | 23MM | 25MM | 28MM | 31MM | |
| Diameter (OD) | 26MM | 30MM | 33MM | 36MM | 38MM | 44MM | 48MM | |
| Thickness (T) | 1.2MM | 1.4MM | 1.4MM | 1.5MM | 1.5MM | 1.6MM | 1.6MM |
