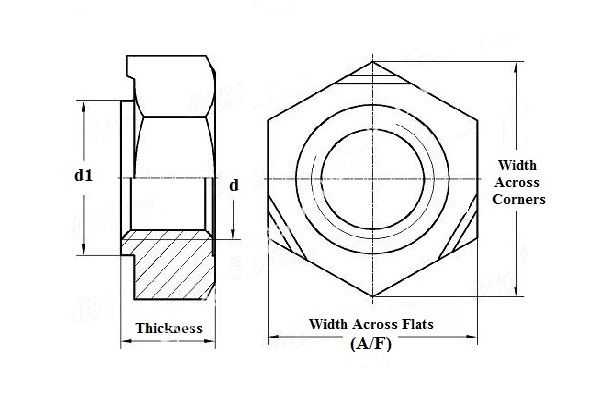

Hexagon Weld Nut (DIN929)
Material:
Steel , Stainless Steel 304 (A2) , Stainless Steel 316 (A4)
Finishing
Steel comes in Plain and Zinc Plated finishing
Note:
Drop us an email if you have other coating requirement
Read More:
| Size | M4 | M5 | M5 | M6 | M6 | M8 | M10 | M10 | M12 | M12 |
| Pitch | 0.7 | 0.8 | 0.8 | 1.0 | 1.0 | 1.25 | 1.25 | 1.5 | 1.25 | 1.75 |
| A/F | 9MM | 10MM | 11MM | 11MM | 13MM | 14MM | 17MM | 17MM | 19MM | 19MM |
| Thickness | 3.5MM | 4.0MM | 5.0MM | 5.0MM | 6.0MM | 6.5MM | 8.0MM | 8.0MM | 11MM | 10MM |
