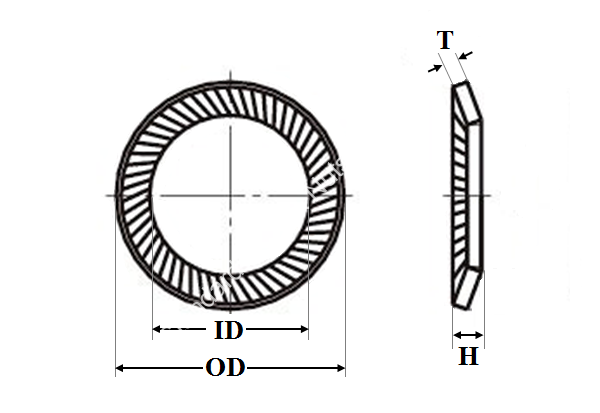

| Size | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 |
| ID | 2.2MM | 2.7MM | 3.2MM | 4.3MM | 5.3MM | 6.4MM | 8.4MM | 10.5MM | 13MM |
| OD | 4.0MM | 4.8MM | 5.5MM | 7.0MM | 9.0MM | 10.0MM | 13.0MM | 16.0MM | 18MM |
| Thickness (T) | 0.35MM | 0.45MM | 0.45MM | 05MM | 0.6MM | 0.7MM | 0.8MM | 1.0MM | 1.1MM |
| Height (H) | 0.6MM | 0.9MM | 0.9MM | 1.0MM | 1.1MM | 1.2MM | 1.4MM | 1.6MM | 1.7MM |
| Size | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | |
| ID | 15MM | 17MM | 19MM | 21MM | 23MM | 25.6MM | 28.6MM | 31.6MM | |
| OD | 22MM | 27MM | 27MM | 30MM | 33MM | 36MM | 39MM | 45MM | |
| Thickness (T) | 1.2MM | 1.3MM | 1.5MM | 1.5MM | 1.5MM | 1.8MM | 2.0MM | 2.0MM | |
| Height (H) | 2.0MM | 2.1MM | 2.3MM | 2.5MM | 2.7MM | 2.9MM | 3.1MM | 3.6MM |
