Wood Insert – Type D

Material :
Zinc Alloy Die Cast

Size:
M6, M8 & M10

Read More:
Catalog Wood Insert – Type D

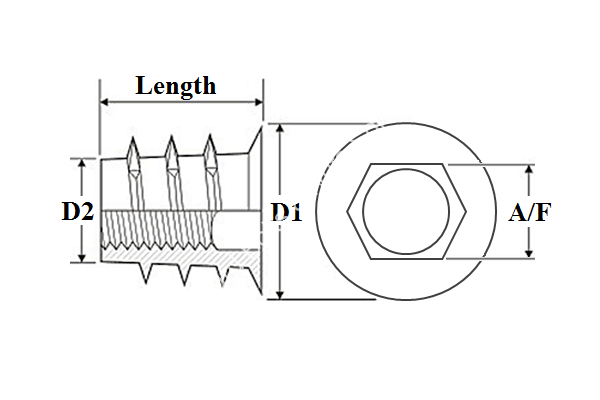

Size M6 M8 M10
Pitch 1.0 1.25 1.5
A/F 6MM 8MM 10MM
D1 12.5MM 14.5MM 16.0MM
D2 8.0MM 9.5MM 11.5MM
Length
  • 10MM
  • 13MM
  • 20MM
  • 13MM
  • 20MM
  • 20MM
